VETRON

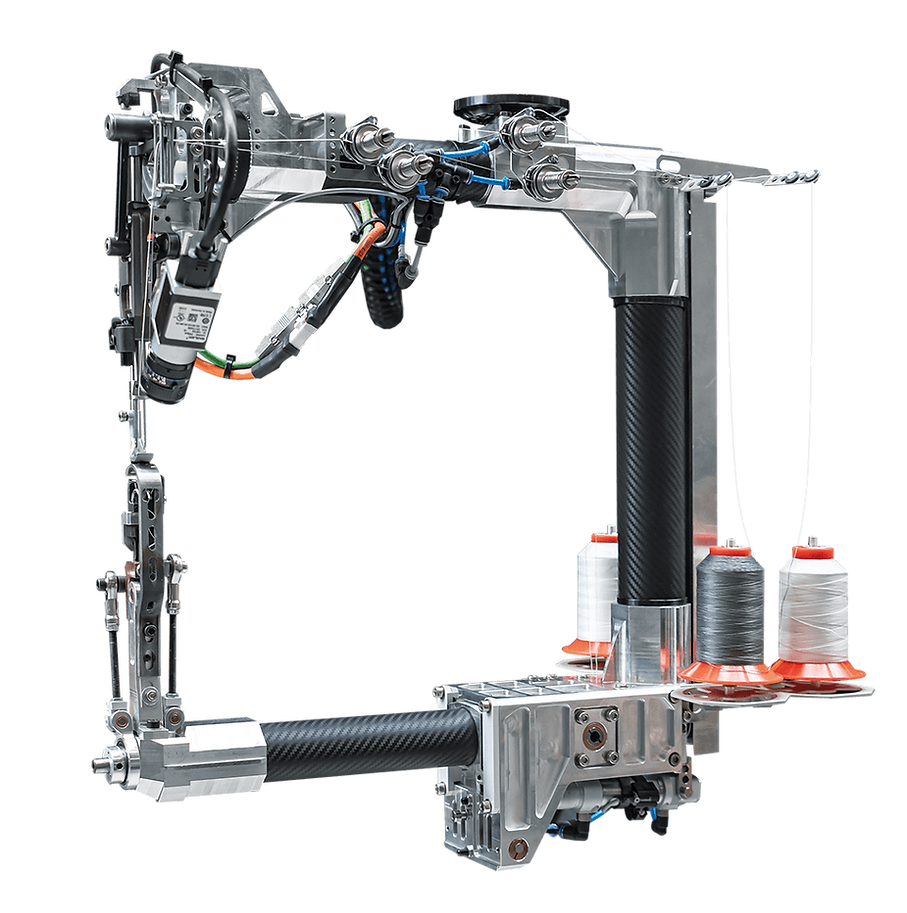

3D Dashboard robotic unit with 1- or 2-needle lightweight chain stitch sewing machine
Field of applications
Features & Technical data
VIPER
» 3D robot system for sewing decorative seams on dashboards
» Compact sewing unit / cell
» 1- or 2-needle double chainstitch sewing machine
» Weight of the sewing machine ~ 15kg
» Direct drive
» Thread cutter system (option)
» Automatic head changing system (option)
» Camera with online path correction
» Online path-following system during sewing process
» 6-axis robot overhead assembly
» For example: Kuka KR 10 R1100-2, motion controlled via Remote Sensor Interface RSI
» Other robot brands can be used if an interface with minimum 4ms cycle without
additional control lag can be supplied
» Vacuum table with individually controlled vacuum fields for dashboard fixation
» Work area secured by light barriers
» Sewing machine service-friendly due to the low shell weight
* Depending on process
** Depending on version
