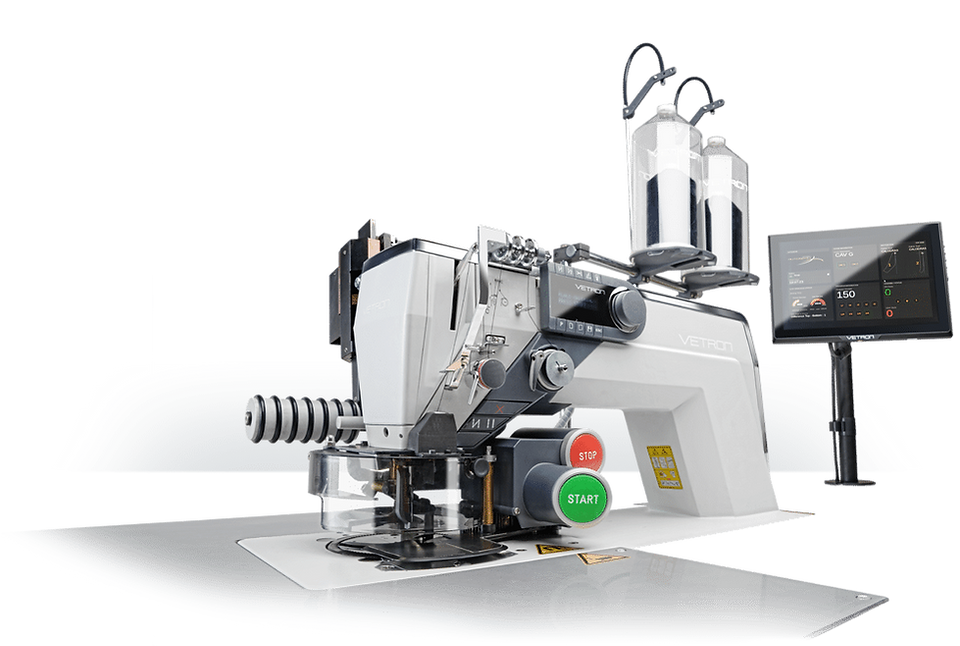

VETRON 5656 AUTOSEAM
Automated sewing direct-drive 1-needle lockstitch sewing machine with triple transport
Field of applications
... for automatic joining of shaped parts with not congruent contours.
With the optical monitoring by cameras in the bottom plate and in the machine head, both material layers are monitored shortly before the needle. A special bottom and top feed automatically feeds the materials with not congruent contours during the sewing process, thus guaranteeing perfect jointing of the materials.
The guiding of the material layers during the sewing process by an operator is replaced by the VETRON 5656 AUTOSEAM.
Features & Technical data
5656
» 1-needle lockstitch with triple transport
» Automatic top-feed-stroke adjustment
» Controlled needle thread tension
» Automatic adjustment of presser foot pressure
» Electronic driven bobbin winder
» Electronic hand wheel
» Electronic back-tack lever
» Automatic enclosed lubrication system
» Programmable seam distance to the material edge 5-15 mm
» With extra large vertical hook (bobbin diameter 32 mm)
» Automatic short thread trimmer, remaining thread length approx. 5 mm
» Bobbin thread monitor
» Needle thread clamp
» Recommended material thickness ~ 2 mm
» Electronic puller for material ejection
» Touch screen control panel for seam programming
» Table size 1500 x 700 mm
» Electrically height-adjustable stand with wheels, EHS-97-107-220-RO
* Depending on process
** Depending on version
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.
More ease of use is impossible
Every operating element in the direct handle area
Electronic bobbin winder
Forward/backward selection key
Electronic hand wheel
Programmable button
Safety button
Forward/backward slider
