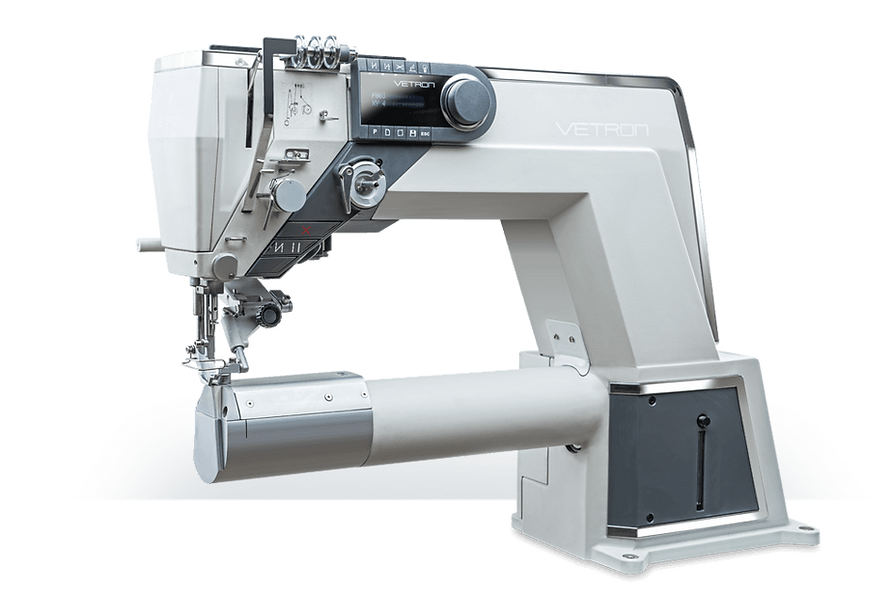

VETRON 5430
Direct-drive 1-needle lockstitch cylinder arm sewing machine with triple transport and vertical hook
Illustration with electric edge guide (option)
Field of applications
Features & Technical data
5430
» Cylinder arm diameter 74 x 78 mm
» Big vertical hook (bobbin diameter 26 mm)
» Optionally with moving binder for perfect binding operations
(binder set 5430 kit 559 708 009)
» Stitch type 301
» Large clearance under the machine arm (350 x 130 mm)
» Max. stitch length 6 mm (On request 9 mm)
» Max. top-feed-stroke 9 mm
» Max. clearance under the sewing feet 20 mm
» Automatic top-feed-stroke adjustment
» Controlled needle thread tension
» Automatic adjustment of presser foot pressure
» Electric driven bobbin winder
» Electronic hand wheel
» Electronic back-tack lever
» Automatic thread cutter
» Integrated LED sewing light
» No compressed air
* Depending on process
** Depending on version
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.
Control Panel P107
Simple operation - easy to remove
The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.
In the automotive production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.
More ease of use is impossible
Every operating element in the direct handle area
Electronic bobbin winder
Forward/backward selection key
Electronic hand wheel
Programmable button
Safety button
Forward/backward slider
Always fit to the application
Gauge part sets and accessories
As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
