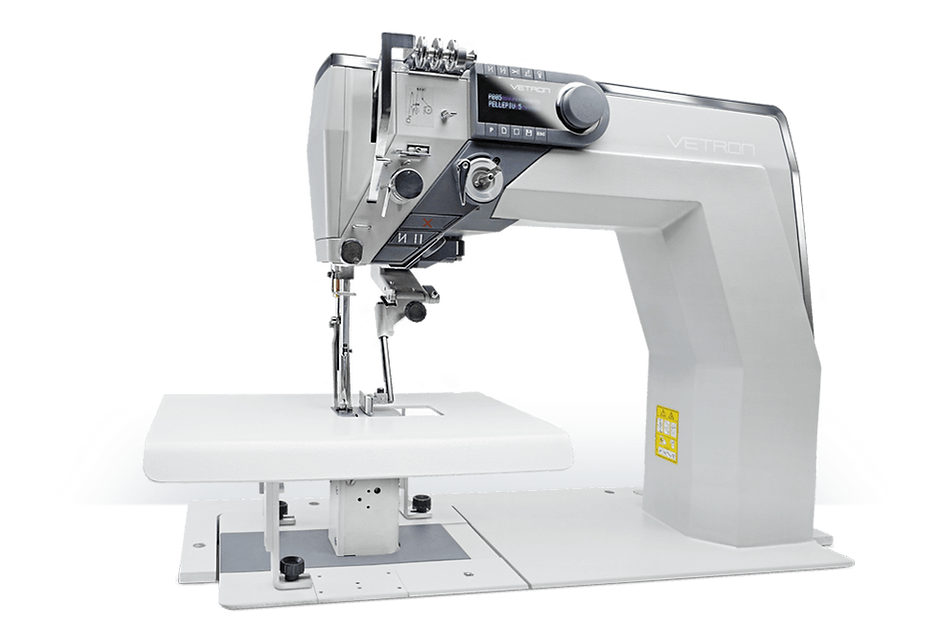

VETRON 5380 DEEPSTITCH
Direct-drive 1-needle lockstitch post bed sewing machine with triple transport
„Lockstitch post bed sewing machine with a 50 mm increased
sewing set“
VETRON presented lockstitch post bed sewing machine features an extra large clearance of 133 mm between the sewing head bottom side and the stitch plate, as well as direct drive and triple transport.
Thanks to an extremely enlarged sewing set, special work operations such as 3D processing with tight radii can be executed easily.
This special postbed sewing machine is tailor-made for automotive, dashboards, bags or suitcase applications. Thanks to the longer needle bar and needle feet, the VETRON 5380 seems to have unlimited range of 360° around the sewing area.
By using the multiple awarded VETRON technology, the VETRON 5380 is the perfect addition for the production process and is suitable for the common use as flatbed or postbed sewing machine aswell.
Field of applications
Features & Technical data
5380
» Very high stitch quality for top-stitching work in the visible areas and for assembly seams
» Stitch type 301
» Big vertical hook (bobbin diameter 26 mm)
» 133 mm from the sewing head bottom side to the stitch plate
(+50 mm compared to standard machine)
» Post height 130 mm
» Large claerance under the machine arm (350 x 310 mm)
» Max. stitch length 6 mm
» Max. top-feed-stroke 9 mm
» Max. clearance under the sewing feet 20 mm
» Automatic top-feed-stroke adjustment
» Controlled needle thread tension
» Automatic adjustment of presser foot pressure
» Electric driven bobbin winder
» Electronic hand wheel
» Electronic back-tack lever
» Automatic thread cutter for threads up to 10/3; thread ends ~13 mm
» Integrated LED sewing light
» No compressed air
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.
* Depending on process
** Depending on version
Control Panel P107
Simple operation - easy to remove
The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.
In the automotive production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.
More ease of use is impossible
Every operating element in the direct handle area
Electronic bobbin winder
Forward/backward selection key
Electronic hand wheel
Programmable button
Safety button
Forward/backward slider
Always fit to the application
Gauge part sets and accessories
As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
