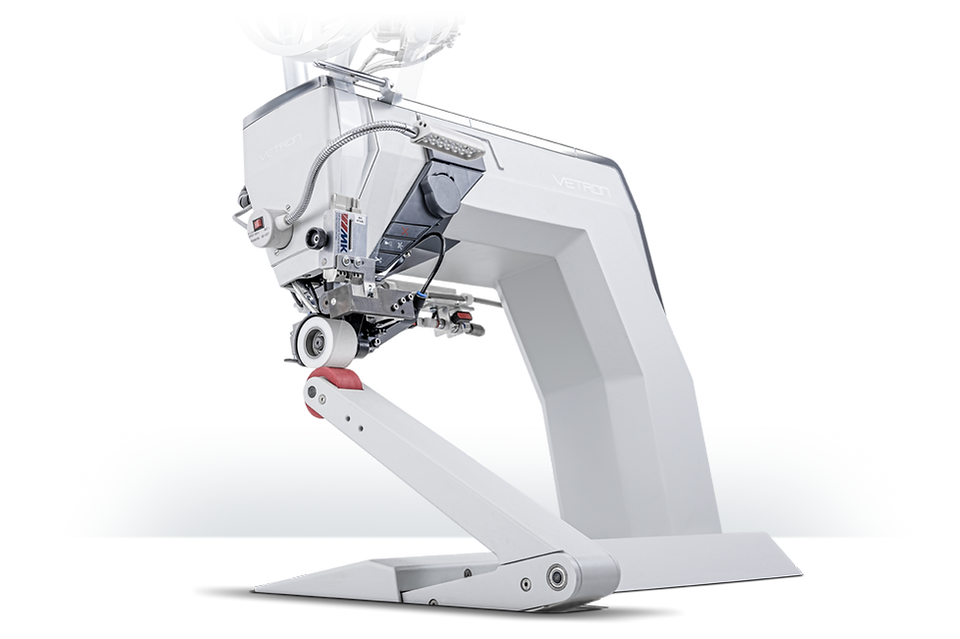

VETRON 5374-21/45
Cold bonding / hot-air combination taping machine for welding continuous seams on water-resistant, waterproof and breathable materials or dashboard seam sealing (slant post in front)
Hotair welding machines are typically used to strengthen and seal seams in the textile and leather industry. Compressed air is heated up to several hundred degrees Celsius by electricity and is blown onto the tape coated with thermoplastic glue...
...the Innovation
ENERGY SAVING OF MORE THAN 90%
The innovation of the VETRON hotair welding machine is based on the development of a new air heater in combination with consistent reduction of heat losses and a newly designed air nozzle. The air supply can be stopped at any time without damage of the heater. The nanoporous thermal insulation and the optimization of the air channel are also reducing energy losses.
The new designed nozzle optimizes the energy transfer to the tape. As a result, the required amount of hot air could be reduced to a fraction.
Comparison tests revealed a possible ENERGY SAVING OF MORE THAN 90% compared to previous systems!
Field of applications
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled.
Process Reliability
User identification via USB dongle (activated via parameter).
Operator does not have access to basic parameters.
Various access codes for Operator / Line Supervisor / Technican / Technical Supervisor (Administrator).
Programmable Setup
All machine settings are programmable and storable.
Fast and precise setup of the machine by recall of a stored machine program.
Easy to understand and intuitive programming concept.
Program chain function to combine different production steps directly on one machine.
User identification by USB-dongle to avoid access on machine settings - on demand.
Features & Technical data
5374-21/45
» Combination between cold bonding and hot air machine
» ENERGY SAVING OF MORE THAN 90% compared to previous systems (Hot air version)
» No air noise in pause mode
» Slant post in front
» Heating power 700 Watt (Hot air version)
» All welding parameters can be programmed and thus reproducibility
» Up to 199 programs can be created
» With integrated, programmable tape pulling and tape feeding device
» Integrated tape cutter (Hot air version)
» 25 mm hot air nozzel with integrated tape pre-heating (patent pending)
(Hot air version)
» With adjustable puller heating (Hot air version)
» Tape width from 5-25 mm adjustable
» Adjustable puller pressure
» Programmable welding speed, separatly adjustable for upper an lower puller wheel
» Programmable welding temperature (Hot air version)
» Lower puller wheels selectively made from steel or silicon
» Puller wheels 26 mm width (other widths on request)
» Puller wheels diameter 45 mm
* Depending on process
Control Panel P107
Simple operation - easy to remove
The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.
In the production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.
