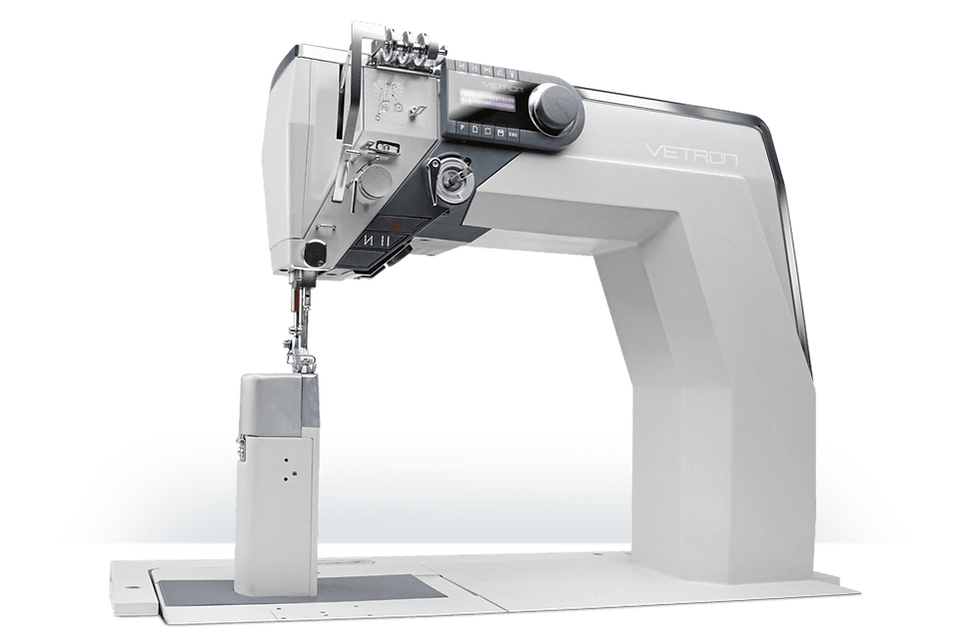

VETRON 5340
Direct-drive 1-needle lockstitch post bed sewing machine with triple transport / Post left
Special post bed sewing machine with post for specific application
The VETRON 5340 with VETRON-technology adds a left-sided post to the post bed range, complementing the 5320 two-needle and the 5300 with a right-sided post.
The range of application includes decorative seams as well as assembly seams, when the use of a right-sided post is not possible due to lack of space.
The machine fits applications in automotive, bags, suitcases, etc. for medium to heavy materials.
Field of applications
Features & Technical data
5340
» Very high stitch quality for top-stitching work in the visible areas and for assembly seams
» Stitch type 301
» Big vertical hook (bobbin diameter 26 mm)

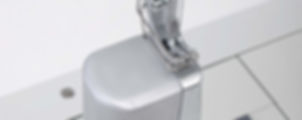

» Post height 180 mm
» Post left side
» Large claerance under the machine arm (350 x 310 mm)
» Max. stitch length 12 mm
» Max. top-feed-stroke 9 mm
» Max. clearance under the sewing feet 20 mm
» Automatic top-feed-stroke adjustment
» Controlled needle thread tension
» Automatic adjustment of presser foot pressure
» Electric driven bobbin winder
» Electronic hand wheel
» Electronic back-tack lever
» Automatic thread cutter for threads up to 10/3; thread ends ~13 mm
» Integrated LED sewing light
» No compressed air
* Depending on process
** Depending on version
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.
Control Panel P107
Simple operation - easy to remove
The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.
In the automotive production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.
More ease of use is impossible
Every operating element in the direct handle area
Electronic bobbin winder
Forward/backward selection key
Electronic hand wheel
Programmable button
Safety button
Forward/backward slider
Always fit to the application
Gauge part sets and accessories
As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
