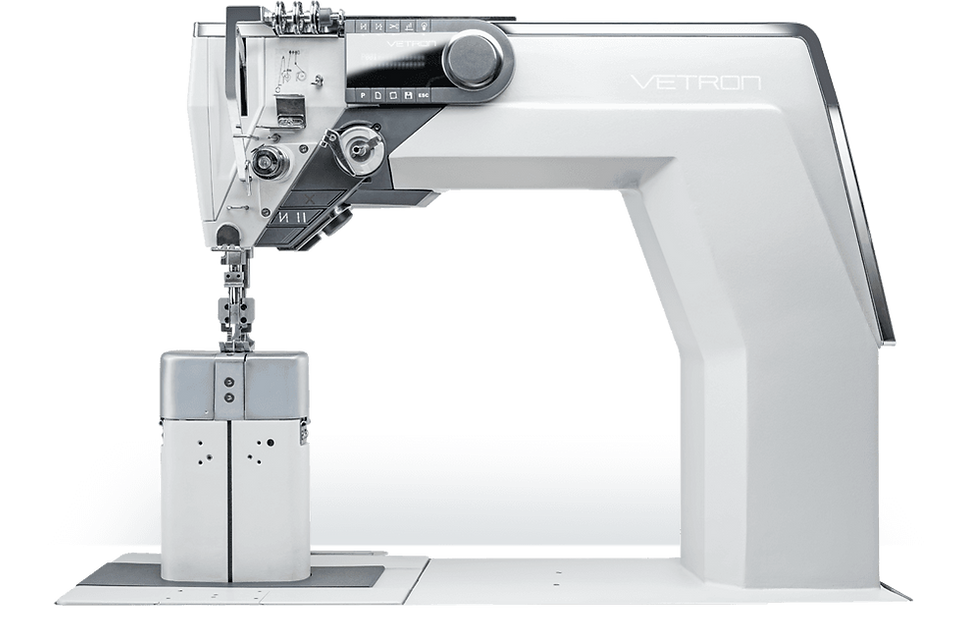

VETRON 5320

Direct-drive 2-needle lockstitch post bed sewing machine with triple transport

Field of applications
Features & Technical data
5320

» Very high stitch quality for top-stitching work in the visible areas and for assembly seams
» Stitch type 301
» Big vertical hook (bobbin diameter 26 mm)

» Standard needle gauge 6/8/10/12 mm
» Post height 180 mm
» Large claerance under the machine arm (350 x 310 mm)
» Max. stitch length 12 mm
» Max. top-feed-stroke 9 mm
» Max. clearance under the sewing feet 20 mm
» Automatic top-feed-stroke adjustment
» Controlled needle thread tension
» Automatic adjustment of presser foot pressure
» Electric driven bobbin winder
» Electronic hand wheel
» Electronic back-tack lever
» Automatic thread cutter for threads up to 10/3; thread ends ~13 mm
» Integrated LED sewing light
» No compressed air

* Depending on process
** Depending on version

High tech as standard


Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.



This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.

Control Panel P107

Simple operation - easy to remove

The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.


In the automotive production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.

More ease of use is impossible

Every operating element in the direct handle area


​Electronic bobbin winder

Forward/backward selection key

Electronic hand wheel

​Programmable button

Safety button

Forward/backward slider

Always fit to the application

Gauge part sets and accessories

As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
