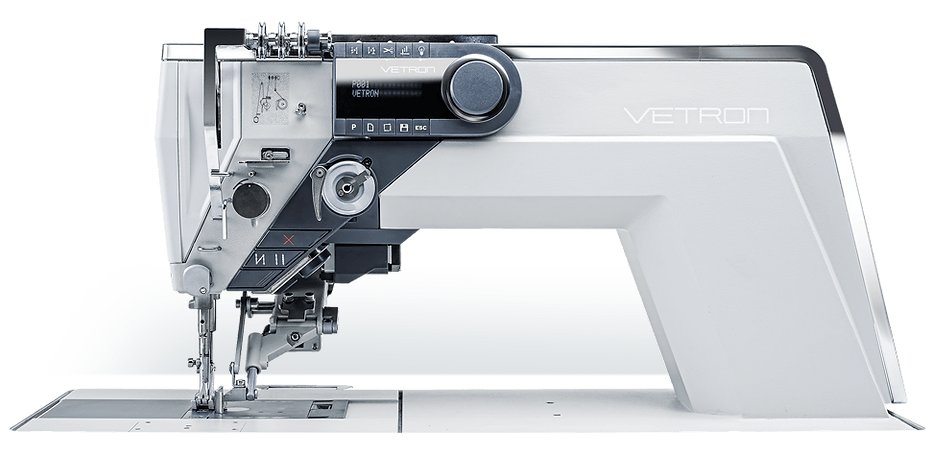

VETRON 5000 // 5010
Direct-drive 1-needle lockstitch sewing machine with triple transport
Field of applications
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.
Features & Technical data
5000 // 5010
» Very high stitch quality for top-stitching work in the visible areas and for assembly seams
» Stitch type 301
» Selective with big vertical hook (bobbin diameter 26 mm) or extra large hook (bobbin
diameter 32 mm)
» Large claerance under the machine arm (350 x 130 mm)
» Max. stitch length 12 mm
» Max. top-feed-stroke 9 mm
» Max. clearance under the sewing feet 20 mm
» Automatic top-feed-stroke adjustment
» Controlled needle thread tension
» Automatic adjustment of presser foot pressure
» Electric driven bobbin winder
» Electronic hand wheel
» Electronic back-tack lever
» Automatic thread cutter for threads up to 10/3; thread ends ~13 mm
» Integrated LED sewing light
» No compressed air
» Electronic programmable intermitted puller transport (option)
» Optionally with moving binder for perfect binding operations
* Depending on process
** Depending on version
Control Panel P107
Simple operation - easy to remove
The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.
In the automotive production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.
More ease of use is impossible
Every operating element in the direct handle area
Electronic bobbin winder
Forward/backward selection key
Electronic hand wheel
Programmable button
Safety button
Forward/backward slider
Always fit to the application
Gauge part sets and accessories
As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
All informations in one place!
Direct download
Here you can find all information about the machines in one place!
Are you looking for the right operating or programming instructions?
With the direct download you have access to all information. Would you like to see the machine in action? Visit our Youtube Channel. Is the corresponding machine not yet online, so contact us. We will produce a product film to the machine as soon as possible.
