VETRON 4000 // 4010 [-13]
Classic direct-drive 1-needle lockstitch sewing machine with triple transport, full function and moving binder
Field of applications
VETRON STARTING THE CLASSIC SERIES
The VETRON 4000 series has been designed as a modern, fully equipped, mechanical industrial sewing machine for use in medium to heavy-duty applications and complements the portfolio with a classic industrial sewing machine in addition to the VETRON 5000 series.
With an exceptionally high stitch quality, it is perfectly suited for topstitching work in the visible area, as well as for assembling seams for use in automotive and upholstery production.
Equipped with a thread trimmer, thread clamp for a clean seam beginning. Switchable, second tension, second stitch length and top feed stroke. Recallable via the switch bar in the arm of the machine. With the built-in LED sewing light and an integrated touch control panel in the machine arm, the VETRON 4000 series offers all the features of a modern, classic industrial sewing machine.
Other features include are a powerful main drive and low-noise, low-vibration operation due to aluminum arm and head covers.
The sewing gauge parts set of the VETRON 4000 series is identical to the VETRON 5000 series and can therefore be used as an original part in VETRON quality for all VETRON series. As a result, the VETRON 4000 series fits easily into the VETRON range and is an ideal operating resource and reliable partner.
Features & Technical data
4000 // 4010 [-13]
» With moving binder for perfect binding operations
» Very high stitch quality for top-stitching work in the visible areas and for assembly seams
» Reliable machine with robust quality
» Powerful direct-drive motor
» Stitch type 301
» Integrated touch control panel
» Selective with big vertical hook (bobbin diameter 26 mm) or extra large hook (bobbin
diameter 32 mm)
» Large claerance under the machine arm (355 x 130 mm)
» Max. stitch length 12 mm
» Max. top feed stroke 9 mm
» Max. clearance under the sewing feet 20 mm
» 2 adjustable stitch lengths
» 2 adjustable top feed strokes
» Electrically switchable additional thread tension
» Hook protection through overload clutch
» Integrated LED sewing light
» Manual VR button
» Knee switch (option) free verifiable to retrieve the 2nd stitch length, 2nd top feed stroke or
2nd thread tension
* Depending on process
** Depending on version

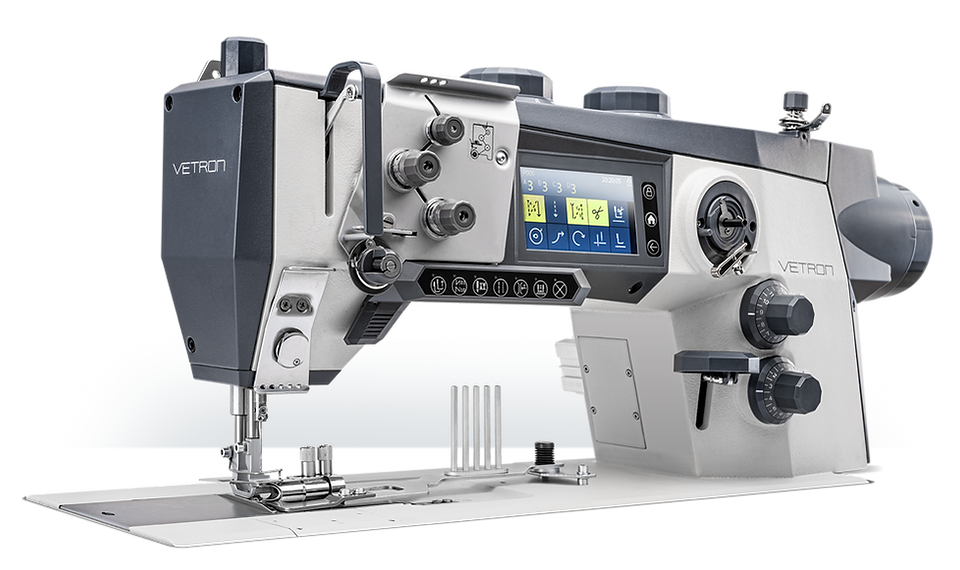

Illustration VETRON 4000//4010 Standard
Always fit to the application
Gauge part sets and accessories
As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
