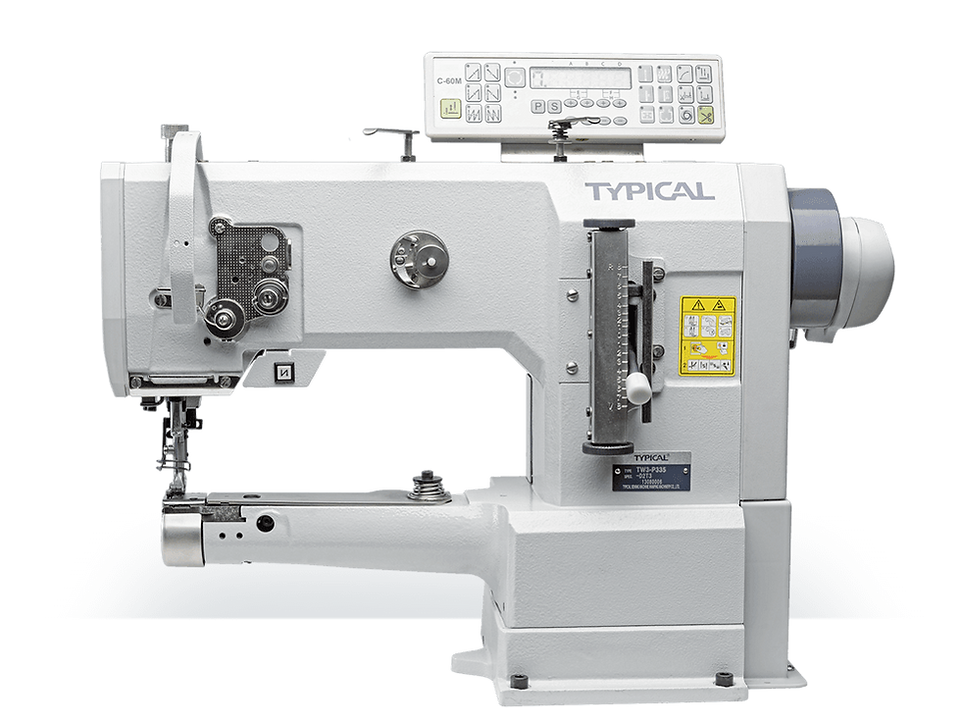

TYPICAL TW3-P335 B // VB // B-D2T3
Cylinder arm compound feed sewing machine
Field of applications
Features & Technical data
TW3-P335 B // VB // B-D2T3
» Slim cylinder arm diameter 46.5 mm
» Compound feed
» Control panel (B-D2T3)
» Binding attachment (VB)
» 2.5-7.0 mm top feed lift allows easy sewing – even at cross-seams
» 14 mm clearance under the lifted sewing feet for easy loading & unloading
» Max. 6 mm stitch length adjustable – forwards and backwards
» Integrated bobbin winder
» Automatic thread trimmer, presser foot lift & bar tack (B-D2T3)
Options
» TW3-P335B with big hook (+40% bobbin thread capacity)
» TW3-P335VB binding attachment synchronized with feed movement & big hook
(+40% bobbin thread capacity)
* Depending on process
** Depending on version
All informations in one place!
Direct download
Here you can find all information about the machines in one place!
Are you looking for the right operating or programming instructions?
With the direct download you have access to all information. Would you like to see the machine in action? Visit our Youtube Channel. Is the corresponding machine not yet online, so contact us. We will produce a product film to the machine as soon as possible.
TYPICA TW3-P335 BV
Cylinder arm machine with binding attachment
This solution enables to sew and sew in border (also in hard accessible at the same time).
