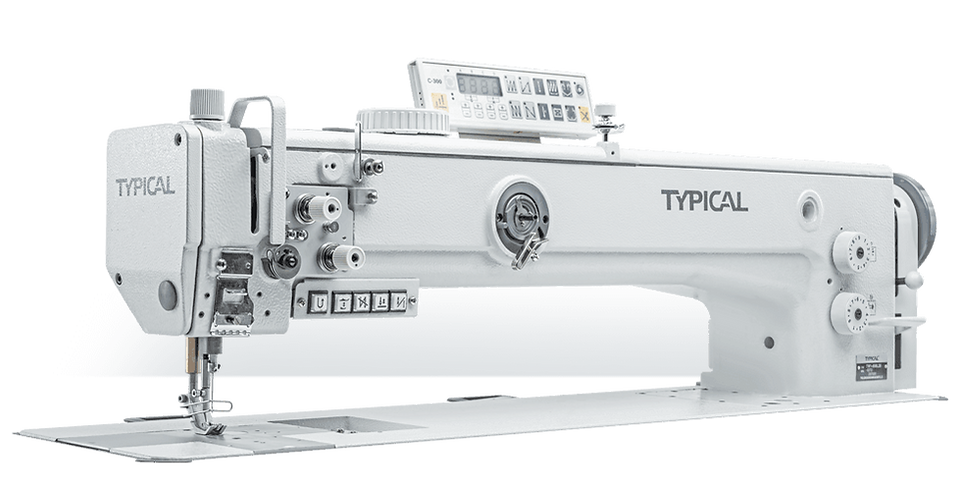

TYPICAL TW1-898L28 D2T3

High-performance 1-needle compound feed long arm lockstitch sewing machine

TYPICAL TW1-898 L28 D2T3-Header.png

Field of applications

Automotive

Upholstery

Tents

VETY_AppIcon-Technical Textile.png

Technical textiles

Features & Technical data

TW1-898L28 D2T3

» Long arm version 700 mm long

» Control panel

» Second stitch length - available via the operating element in the "handle" area of the
operator

» Bigger hook

» Large passage space under the arm
» Thread trimmer

» Automatic presser foot lift
» Automatic bar tack

» Sewing arm integrated button bar for fast access to machine functions

» Automatic lubrication system

Max. sewing speed

1.800* spm

Max. stitch length

9.0 mm

Transport types

Compound feed

Top feet stroke

7.0 mm


Second stitch lenght

•

Needle system

135x17 / DPx17

VETY_Needle size-TYB.png

Needle size

120-160** Nm

Number of needle

1

Max. thread thickness

20/3**

Vertical hook

26 mm

Thread trimmer

•

Stitch type

301 (Lockstitch)

Needle stroke

36 mm

Clearance under the arm

700 x 120 mm

Clearance under sewing foot

9 / 16

Automatic presser foot lift

•

Automatic back tack

•

Material thickness

M/H

* Depending on process
** Depending on version
