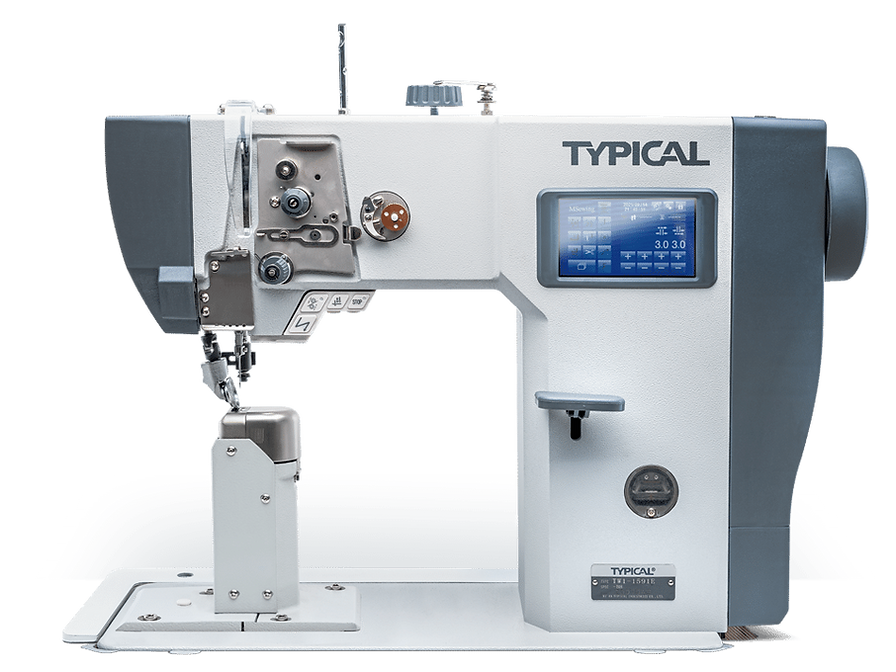

TYPICAL TW1-1591E-BH
Full electronic post bed sewing machine with wheel feed, driven roller presser and needle feed
Field of applications
TW1-1591E-BH
TW1-1591E-BH for medium to heavy materials
The TW1-1591 E-BH is equipped with a large hook (bobbin 26 mm) for more bobbin thread.
The preferred area of application for this series are the production of hiking, snow, safety shoes and military boots. Decorative and assembly seams on hard leather and thick bobbin threads can be processed easily and with the highest stitch quality.
Features & Technical data
TW1-1591E-BH
» 5-inch high-resolution color screen for easy and fast operation
» Electronic knee switch for example: stitch length change, reverse stitch, presser foot lift
» Direct drive on the arm shaft ensures better power transmission and higher puncture
force
» Guaranteed „stitch-in-stitch“ by back tack
» Additional electrical back tack lever in traditional position
» Wheel feed, driven roller presser and needle feed are controlled by stepper motors
» Stitch lengths are reproducible at any time
» Programmable differential feed (+/- 1.0 mm) for top and bottom feed
» No stitch length difference when transferring sewing programs from machine to machine
» Easy adjustment of stitch lengths and back tack stitch on the control panel
» High seam quality for functional and decorative seams
» Multifunction button in easy reach of the operator
» Integrated LED sewing light with 3 lighting levels and colour change for fluorescent
markings
» Easily adjustable thread trimmer (up to 15/3 syn.)
» Overload clutch for hook protection
» Simplification of the sewing process by programming seam sections.
» Programs can be transferred to the machines via USB
» No compressed air required
» Connection voltage, single-phase a.c. 230 V, 50/60 Hz
* Depending on process
** Depending on version
Multifunction & Light
Multifunction button in easy reach of the operator.
Integrated LED sewing light with 3 lighting levels and colour change for fluorescent markings
