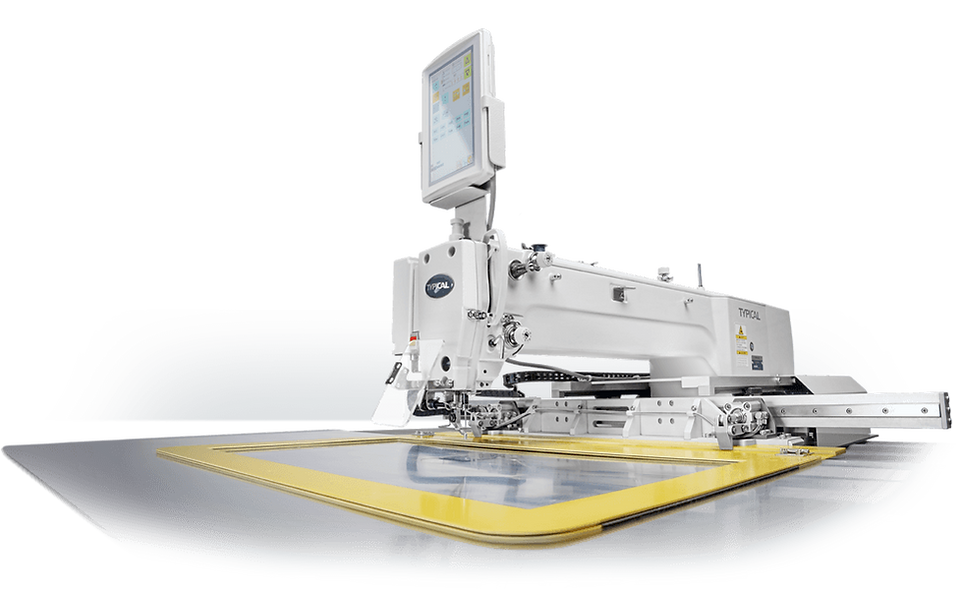

TYPICAL TC6040GB
Electronic direct-drive lockstitch pattern sewing machine
High seam quality and convenient operation
Electronic pattern sewing machine of the TC series with fast sewing speed, large sewing area. High seam quality through intermittent transport and energy-saving technology for more environmental protection. Typical application in the clothing industry for men and women, jeans, luggage, bags, shoes and other purposes.
Touchscreen display for creation and administration of sewing programs.
Bobbing thread winding function at the push of a button. The optimum position for needle threading will be approached after pushing the button. Clamp drops down, needle thread tension will open. 512 sewing pattern a total of 20,000 programmable stitches. Import or export of sewing programs via USB stick.
Field of applications
Features & Technical data
TC6040GB
» Touchsreen display to create and administrate sewing programs
» USB Schnittstelle am Touchsreen
» Intergrated sewing LED
» High precision servo motors control for very accurat seams, stitch length
from 0.05 –12.7 mm programmable
» Intermittent transport
» Programmable pressure foot height
» Powerful integrated direct-drive (230 V, 550 W) with increased torque
» CB-hook for increased stitch quality up to thread N° 20/3
» Secondary thread tension (option)
» Automatic thread cutter
» Thread wiper for a neat seam start
» Presserfoot height programmable for excellent seam quality even at cross seams
» Upper thread breakage identification with automatic sewing stop
» Full automatic lubrication system
» Power supply: 230 V / 50 Hz, 3 phase 110 V
* Depending on process
** Depending on version
Control panel
Touchscreen display for creation and administration of sewing programs
Bobbing thread winding function at the push of a button. The optimum position for needle threading will be approached after pushing the button. Clamp drops down, needle thread tension will open
512 sewing pattern a total of 20,000 programmable stitches
Import or export of sewing programs via USB stick
