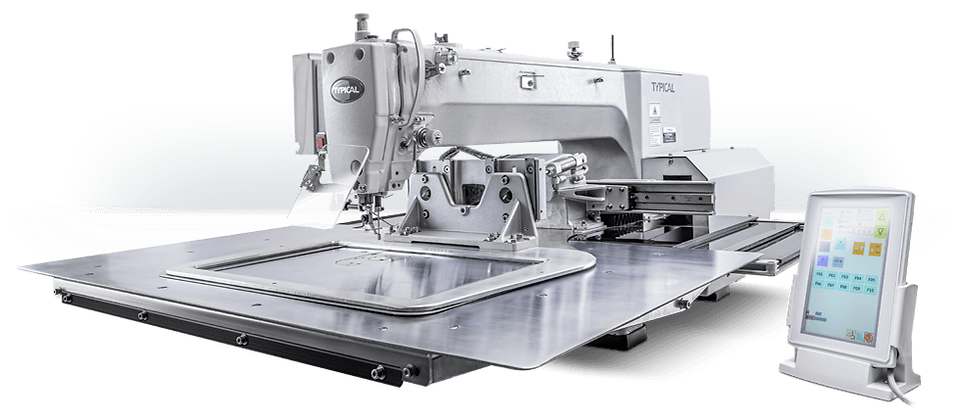

TYPICAL TC3020GB

Electronic direct-drive lockstitch pattern sewing machine


High seam quality and convenient operation


Electronic pattern sewing machine of the TC series with fast sewing speed, large sewing area. High seam quality through intermittent transport and energy-saving technology for more environmental protection. Typical application in the clothing industry for men and women, jeans, luggage, bags, shoes and other purposes.

Touchscreen display for creation and administration of sewing programs.
Bobbing thread winding function at the push of a button. The optimum position for needle threading will be approached after pushing the button. Clamp drops down, needle thread tension will open. 512 sewing pattern a total of 20,000 programmable stitches. Import or export of sewing programs via USB stick.

Field of applications
Features & Technical data
TC3020GB

» Touchsreen display to create and administrate sewing programs
» USB Schnittstelle am Touchsreen
» Intergrated sewing LED
» High precision step-motors control for very accurat seams, stitch length from
   0.05 –12.7 mm programmable

» Optionally with servo motors (H version)
» Intermittent transport
» Programmable pressure foot height
» Powerful integrated direct-drive (230 V, 550 W) with increased torque
» CB-hook for increased stitch quality up to thread N° 20/3
» Secondary thread tension (option)
» Automatic thread cutter
» Thread wiper for a neat seam start
» Presserfoot height programmable for excellent seam quality even at cross seams
» Upper thread breakage identification with automatic sewing stop
» Full automatic lubrication system

* Depending on process
** Depending on version

Control panel

Touchscreen display for creation and administration of sewing programs


Bobbing thread winding function at the push of a button. The optimum position for needle threading will be approached after pushing the button. Clamp drops down, needle thread tension will open


​512 sewing pattern a total of 20,000 programmable stitches


Import or export of sewing programs via USB stick

All informations in one place!

Direct download

Here you can find all information about the machines in one place!
Are you looking for the right operating or programming instructions?

With the direct download you have access to all information. Would you like to see the machine in action? Visit our Youtube Channel. Is the corresponding machine not yet online, so contact us. We will produce a product film to the machine as soon as possible.




Sewing area 300 x 200 mm
