TYPICAL

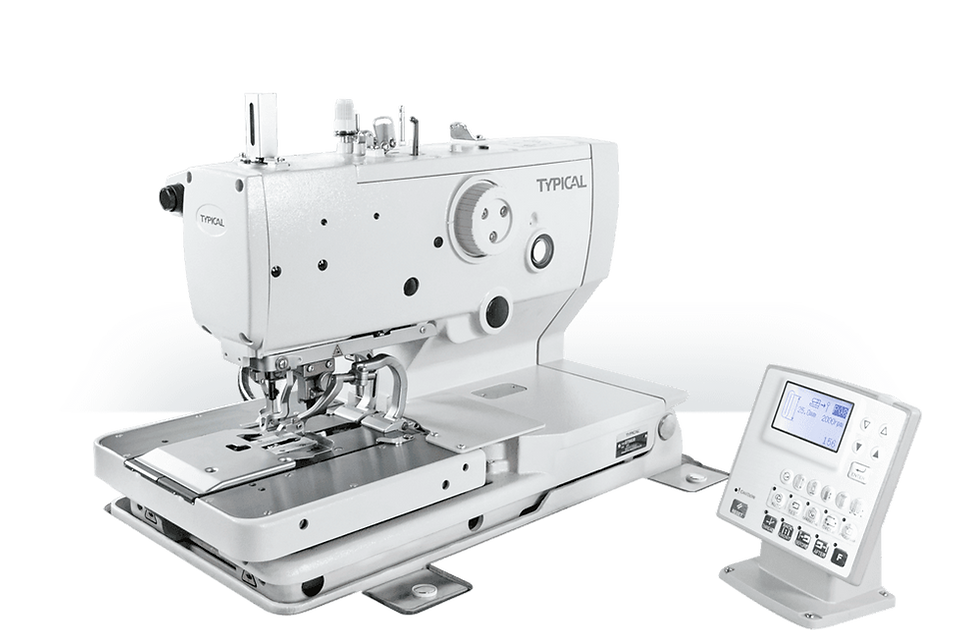

GT9820-00 // GT9820-01 // GT9820-02
Electronic eyelet button hole sewing machine
Field of applications
Button holes
Eyelet button hole / Button hole with taper bar, cross tack, without tack & round tack
Features & Technical data
GT9820-00 // GT9820-01 // GT9820-02
» Fully automatic lubrication system
» Zig-zag width mechanical 1.5-4 mm
» Electronic max. up to 5.0 mm; delivery status is 2.5 mm (GT9820-00 & GT9820-01) or
3 mm (GT9820-02)
» Feed mechanism: intermitted 3 axis stepping motors
» Integrated direct-drive (550 W / 230 V)
» Power supply: 230 V / 50 Hz, 3 phase 110 V
» Consumption of compressed air: Around 44 liter/minute with about 8 button holes /
minute
» High-precision stepping motors control for very accurate button holes
» Large clearance under the sewing arm for easy handling of the material
» Collection device for cut thread ends, keeps the machine clean
» Vacuum waist removal for button hole cut-outs
» Air pressure detector prevents machine function at low air pressure
» Push button to stop the machine at thread break during sewing
* Depending on process
** Depending on version
Option
» Automatic machine stop by means of needle thread monitor
» Set-up kit for semi-submerged machine assembly
» Pedal device for machine start function
» Vent-hole (round-hole) sewing kit
