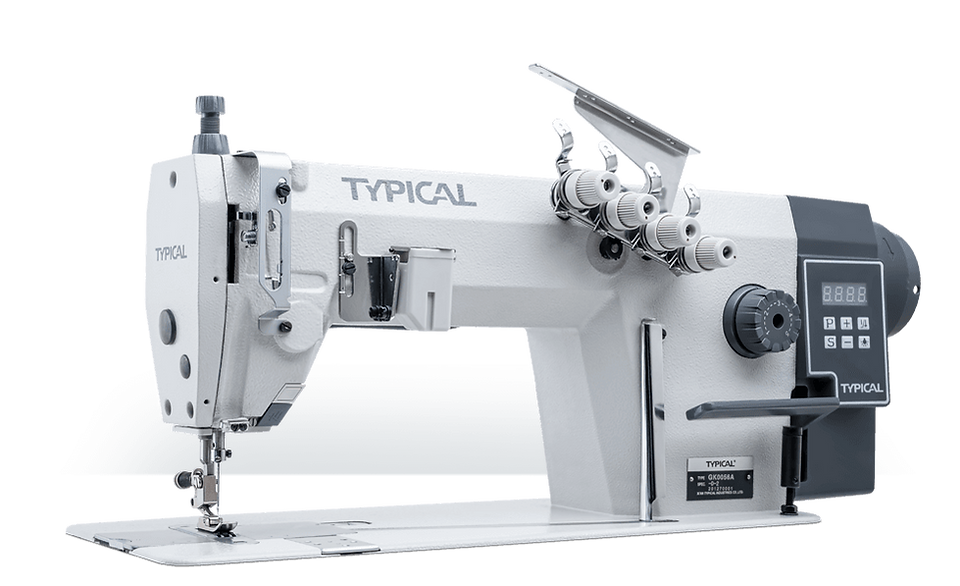

TYPICAL GK0056A D
Direct-drive high-speed flat bed chain stitch sewing machine
Field of applications
Features & Technical data
GK0056A D
» Stitch type 401 (Double Chainstitch)
» Needle alignment in line
» Max. sewing speed 4,000 spm.
» Max. stitch length 5 mm
» Max. clearance under the sewing foot 5.5 mm
» Direct drive
» Drop feed
» Mechanical puller system (option)
» Automatic oil pump lubrication system
* Depending on process
** Depending on version
GK0056A D
Powerful direct drive
GK0056A D
Models
GK0056A D1
» 2 needle, 4 thread (2×401) chainstitch machine
» Standard needle distance 6.4 mm (also available: 3.2 / 4.0 / 4.8 / 5.6 / 7.9 / 9.5 / 12.7 mm)
GK0056A D2
» 1 needle, 2 thread (1×401) chainstitch machine
GK0056A D3
» 2 needle, 4 thread (2×401) chainstitch machine
» Standard needle distance 4.8 mm
» Needle alignment in line
GK0056A D4A
» 3 needle, 6 thread (3×401) chainstitch machine
» needle alignment diagonal
» Standard needle distance 6.4 mm (otherson request)
GK0056A D4B
» same as GK0056 D4A, but needle alignment in triangle style
GK0056A D4A / D4B
GK0056A D3
GK0056A D2
