TYPICAL GC6760 X-FEED

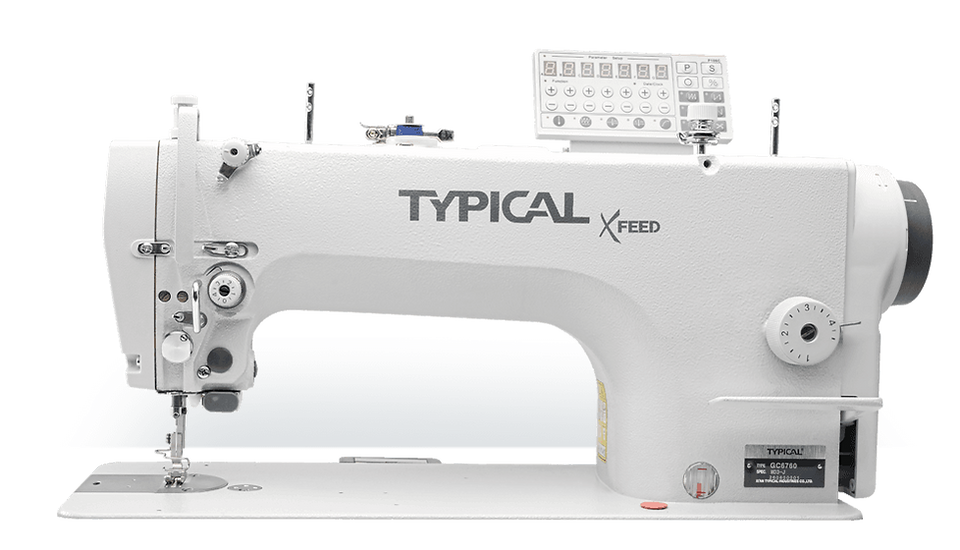

Direct-drive high-speed lockstitch sewing machine with X-FEED
Field of applications
THE INNOVATION
The split bottom feed for needle feed machines.
Features & Technical data
GC6760 X-FEED
» X-Feed: needle feed & alternating drop feed (patent applied)
» Comfortable and high speed sewing
» Direct drive
» Integrated LED sewing light
» Thread cutter
» Thread wiper
» Automatic foot lift & back-tack
» Automatic enclosed lubrication system
» Connection voltage, single-phase a.c. 230 V, 50/60 Hz
* Depending on process
** Depending on version
All informations in one place!
Direct download
Here you can find all information about the machines in one place!
Are you looking for the right operating or programming instructions?
With the direct download you have access to all information. Would you like to see the machine in action? Visit our Youtube Channel. Is the corresponding machine not yet online, so contact us. We will produce a product film to the machine as soon as possible.
THE INNOVATION
The split bottom feed for needle feed machines.
X-Feed is characterized by a split bottom feed. Due to the alternating movement of both feed dogs, the material is transported continuous and calm.
THE BENEFIT
» More than 35% lower needle thread tension
» Stitch length 0–9 mm
» Continuous and calm feeding
» Highly improved stitch quality – even on
thin materials
» Highly improved feeding capabilities –
even on heavy materials
» Nearly no ply-shift as well as on diffi cult
material
» Harmonic sewing feeling for the operator
THE FUNCTION
During the fi rst half stitch length, the needle and the yellow feed dog are transporting the material ( A ). While the needle is leaving the material and is moving forward, the feed dog is moving down and towards the sewing direction. The blue feed dog is now taking over the transport of the second half stitch length and brings the stitch to its end ( B ).
A
B
Stages of the stitch formation
1 » The needle is entering the material. Both feed dogs are on the same level.
2 » Needle and yellow feed dog are feeding the material. The blue feed dog is
moving towards the sewing direction below the stitch plate.
1
2
3 » The needle is leaving the material. The blue feed dog is taking over the transport. Both
feed dogs are on the same level.
4 » The blue feed dog is transporting the material. The needle and the yellow feed dog are
moving towards the sewing direction. While the blue feed dog is transporting the
material in sewing direction, the thread take-up lever is pulling the thread. – An effect that
stretches the stitch like on a puller machine. Therefore, the machine can work with a
lower thread tension and very even seams can be achieved.
3
4
