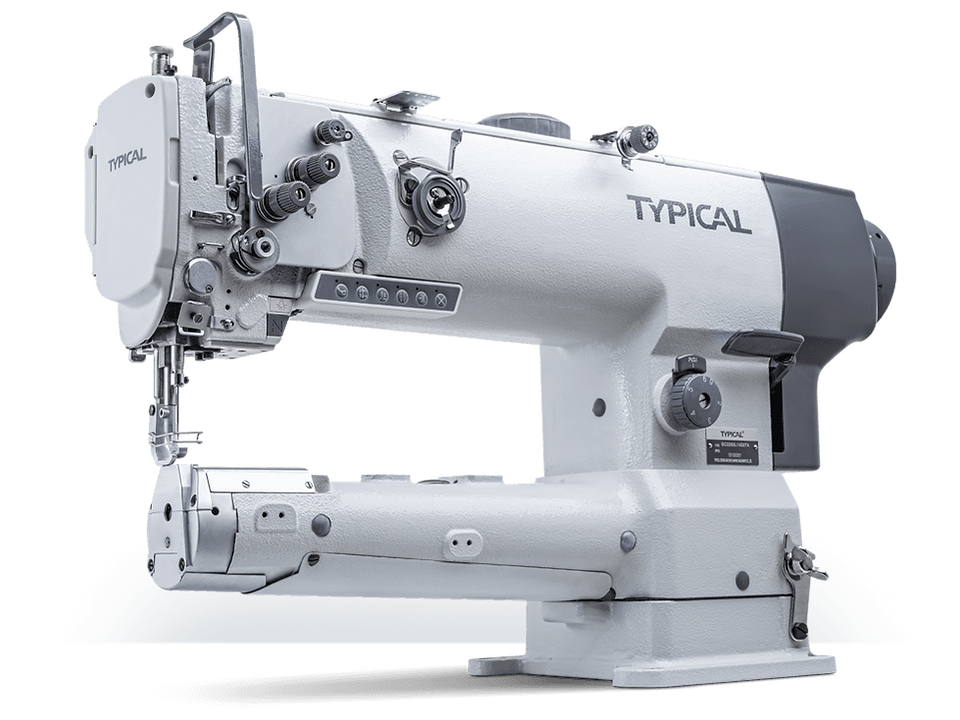

TYPICAL GC2263L14 D3T4
Direct-drive 1-needle lockstitch cylinder arm sewing machine with triple transport, thread trimmer and vertical hook
Field of applications
Features & Technical data
GC2263L14 D3T4
» Cylinder arm sewing machine with vertical hook 26mm bobbin size
» Cylinder arm diameter 72 mm
» Control panel
» Direct drive
» Second top feed stroke - available via the switch bar in the operator ‘s handling
space
» Integrated LED sewing light
» Automatic thread trimmer
» Automatic presser foot lift
» Automatic bar tack
» Integrated switch bar in the operator's grip area for quick access
to machine functions: Intermediate bartack, change of top feed stroke,
needle position... etc.
» Hook protection against thread jamming realized by overload coupling
» Second thread tension switchable
» Automatic lubrication system
* Depending on process
** Depending on version
