TYPICAL GC2263D // GC2263DV
Direct-drive 1-needle lockstitch cylinder arm sewing machine with triple transport and vertical hook

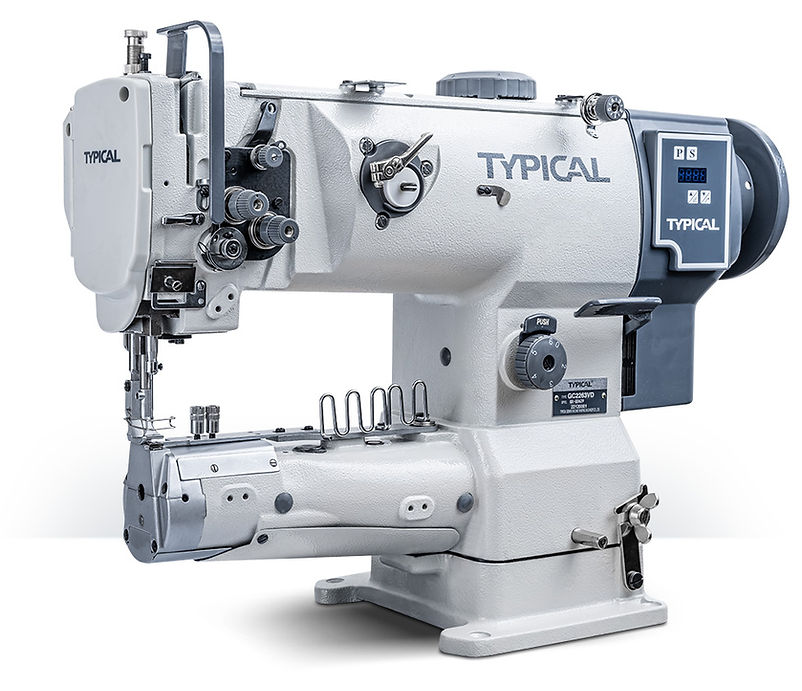

Illustration GC2263DV
Field of applications
TYPICAL GC2263DV
Cylinder arm machine with binding attachment
This model is dedicated to medium and heavy sewing. It is possible because of compound feed, higher needle bar stroke (36mm) and 16mm lifting amount of presser foot. Cylinder bed has 72mm diameter and enables to sew bags, suitcases etc. This lockstitch has bigger hook and binding attachment. This solution enables to sew and sew in border (also in hard accessible at the same time).
Features & Technical data
GC2263D // GC2263DV
» Heavy-duty compound feed sewing machine
» Direct drive 850W
» Cylinder arm sewing machine with vertical hook 26mm bobbin size
» Binding attachment (V)
» Max. 6.5mm top feed lift allows easy sewing even at cross-seams
» 16 mm clearance under the lifted sewing feet for easy loading and unloading
» Max. 6 mm stitch length adjustable - forwards and backwards
» Hook protection against thread jamming realized by overload coupling
» Cylinder arm diameter 72 mm
* Depending on process
** Depending on version
