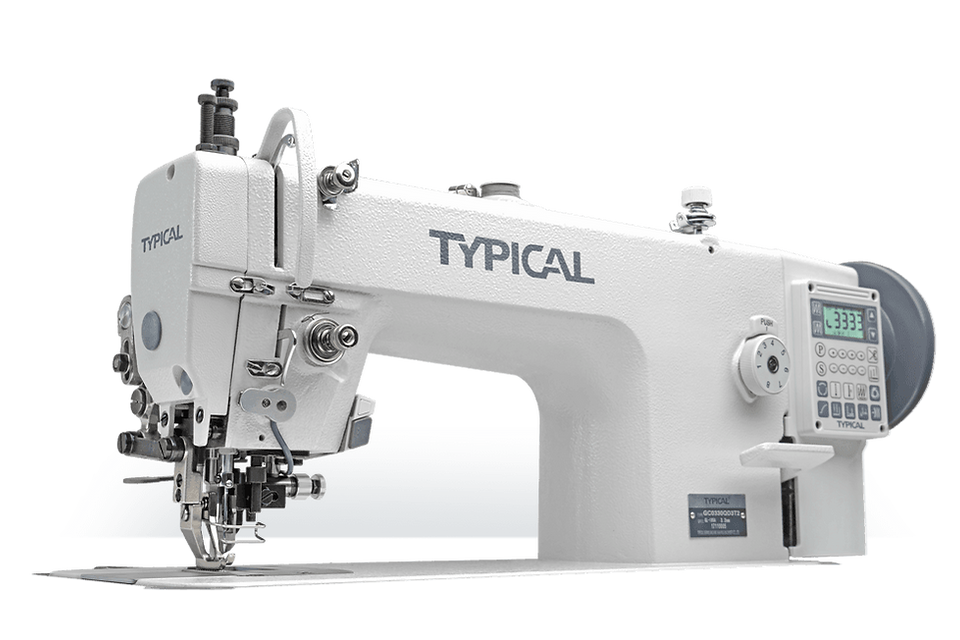

TYPICAL GC0330Q D3T2

Direct drive lockstitch sewing machine with alternating top and bottom feed and edge trimmer

TYPICAL GC0330Q D3T2-Header.png

Field of applications

Automotive

Upholstery

Bags

Backpack

Suitcases

Features & Technical data
GC0330Q D3T2

» Edge cutter

» Direct-Drive
» Integrated LED sewing light

» Automatic oil pump lubrication system
» Automatic thread trimmer

» Back tack & presser foot lift

» Thread clamp

Max. sewing speed

2.200* spm

Max. stitch length

8.0 mm

VETY_Drop-and-alternating-top-feed-TYB.p

Transport types

Alternating top and bottom feed

Needle system

DPx17

VETY_Needle size-TYB.png

Needle size

120-150** Nm

Max.thread thickness

20/3**

Horizontal hook

26 mm

Thread trimmer

•

Stitch type

301 (Lockstitch)

Needle stroke

37 mm

Clearance under the arm

260 x 120 mm

Clearance under sewing foot

6 / 13

Thread clamp

•

Automatic presser foot lift

•

Automatic back tack

•

Edge cutter

•

Drive

Direct drive

Material thickness

M

* Depending on process
** Depending on version
