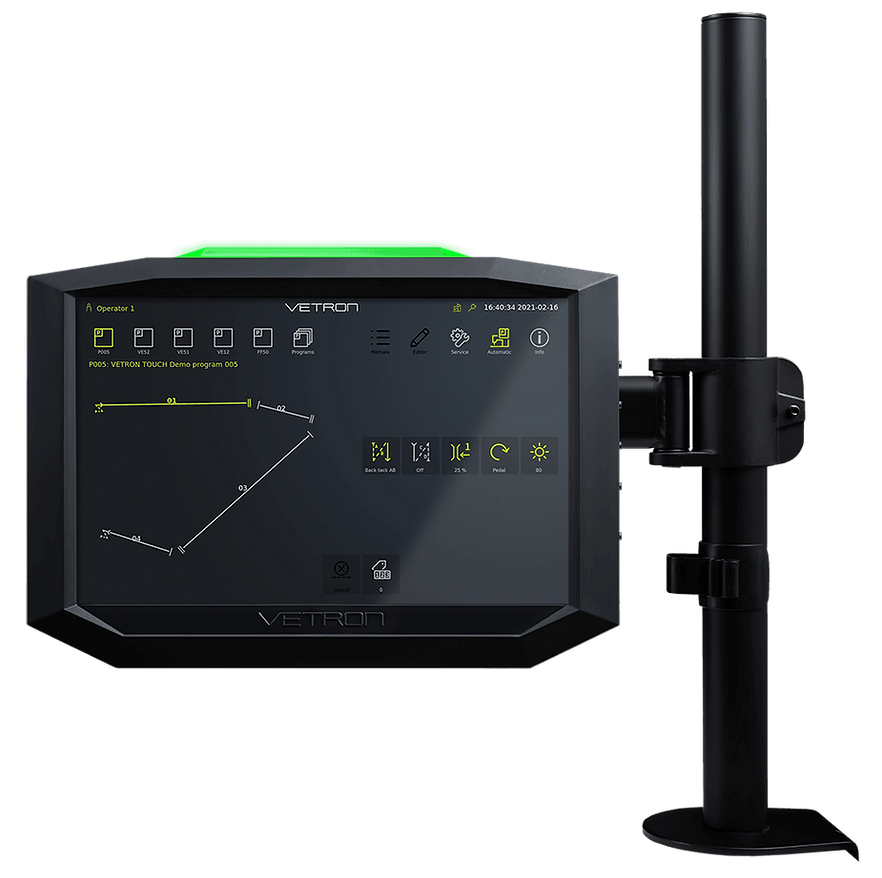

VETRON TOUCH 4.0
The digital upgrade for your VETRON sewing machine
VETRON TOUCH 4.0 represents the digital addition to your VETRON sewing machine and is the upgrade to the previous v_sion control panel. The original sewing machine control panel with keys and rotary wheel is replaced by a clear and intuitive touch display that is connected directly to the machine control.
The VETRON TOUCH 4.0 takes over all previous functions of sewing machine operation and additionally enables the integration of digital content to support the user (for example operating instructions with photos / videos).
The seam designer supports the definition of chain programs. It visualizes the programs in the display field, additional events can be integrated between the seam sections. The current seam section is highlighted in the display field during sewing.
User access management enables the assignment of rights to different user groups.
The system history records data that can later be used for precise production analysis or accurate trouble shooting.
Service personnel are supported in their work by the digital content and the setup wizard. Predictive maintenance functions help minimize down time and prevent failures.
THE DIGITAL UPGRADE FOR YOUR VETRON SEWING MACHINE
STATUS LED AND ICON COLOR PROVIDE FEEDBACK ON SEWING MACHINE STATUS
» Color of icons give feedback about standard or editing mode
» Status LED indicates the connection status. Login operator/supervisor/technician/admin
or error messages
USER MANAGEMENT - SECURITY PROCESS
» User identification by PIN, RFID or scan. Different access rights for operator, operator 2,
supervisor, technician, and the administrator.
PROGRAM SELECTION / ADMINISTRATION
» Programs quickly changeable via input field
NAVIGATION AREA
» The navigation area is used to select the appropriate commands
» General settings, service functions, documentation, user administration, import/export
and history are quickly available to authorized users
HANDLING VIA ACTION ICONS IN THE INPUT FIELD
» The input field consists of modern buttons with self-explanatory icons
» The operator can operate the machine freely in manual sewing mode (can be activated
via parameters) like a classic mechanical machine
» Technicians, supervisors and administrators have quick access to additional levels to
safely edit the machine
DISPLAY FIELD FOR LISTS AND SEAM DESIGNERS
» Unique seam designer simplifies the programming of seam sections and chain programs.
Integration of events/Poka Yoke are easy to define
» The display field provides feedback on the current process
+++ NEW +++
VETRON SAFETY MODE
The safety of the operator is paramount. VETRON has developed a new safety program for the VETRON 5000 series in conjunction with TOUCH 4.0 to reduce the risk of injury to the operator.
Risk of crushing due to presser foot
VETRON's "SAFETY MODE" reduces the risk of crushing by the presser foot. If the presser foot detects resistance during lowering, the process is stopped.
Injury by the needle point
VETRON reduces the needle tip injury by the programmed needle position at the end of the seam. At the end of the seam, it dips so far into the sewing foot that there is no longer any risk of injury.
Features & Technical data
VETRON TOUCH 4.0
» Standard display panel for VETRON 5000
(The control panel P107 is replaced by the VETRON TOUCH 4.0)
» Easy-to-use operation and management software
» Unique graphical seam designer
» Clear data manager for optimal management of data and programs
» 10.1 Inch display with touch function
» Screen resolution 1280x800 pixel
» Status LED in housing
» 2x USB 3.0
» 1x Cat 6 ethernet
» Connection 12V/5A (incl. power supply)
» Connection machine control D-SUB 37
» Electrical power 60W
» External display holder, viewing angle freely adjustable
